Earthing Products

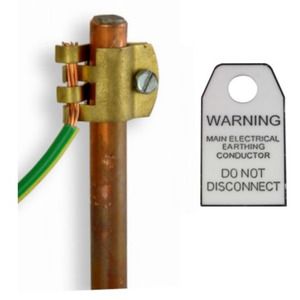

Brass Cable Clip

Used for connecting 14mm – (5/8) rod to a Cable range of 6 - 16 mm²

Lighting & Protection System

Cable Crimp Connector

Cable Size : 25mm / 35mm / 50mm / 70mm / 95mm

Material : Copper

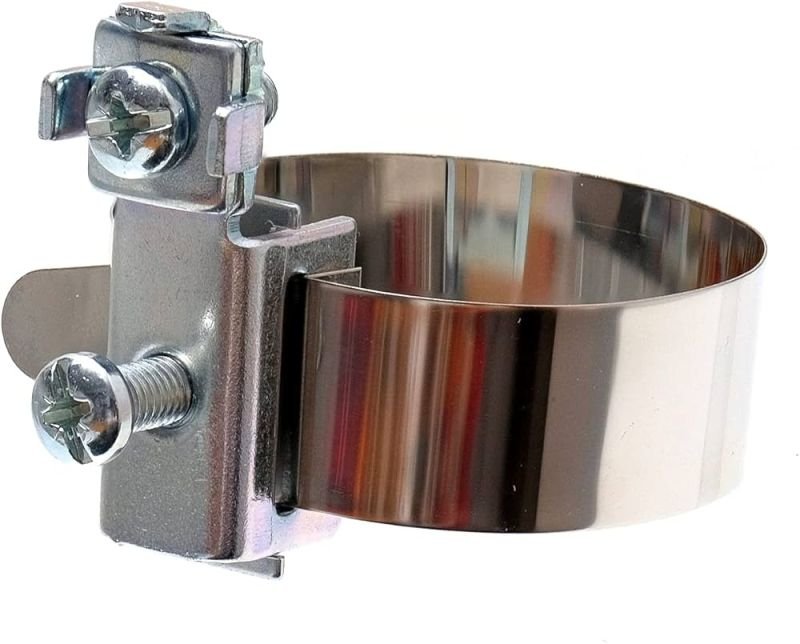

Earthing clamps are used for the connection of earthing cable to tubular

construction or pipes. They are provided with a bracket and clamping screw.

Tape material: Stainless steel 304

• Bracket material: Blue bichromate steel

• Screw material: Blue bichromate steel

• Screw Size : Slotted head M6x160

• Width of the tape: 19mm

• Length of the tape: 140mm / 190mm / 420mm / 600mm

• Tightening range: 12/28mm

• Conductor capacity: From 2.5 to 16mm²

• Mounting: For indoor use only

EARTH DISTRIBUTOR

Application(s): For connection: • 1 cable 35 mm² max without cutting (main line). • 4 outputs 25 mm² max. • 1 branch 35 mm² max. Technical details: • Brass profile, PC/ABS case. • IPXXB protection index. Length (mm) Width (mm) Height (mm) 110 40

Application:

High performance earth clamp is widely used to connect the pipes to conductor for earthing.

Available in three colours - Red for non-corrosive dry atmospheres, Blue or Green for corrosive or humid conditions.Available in three standard band lengths.

Characteristics:

Standard Packing:    Inner Box of 20 pieces and Outer Box of 500 pieces

Unit weight:              40g Approx

Clamp for earthing pipes

• ^{Applications                                   Earthing clampsareusedfortheconnectionofearthingcabletotubular}
• ^{construction or pipes. They are provided with a bracket and clamping screw.}
• ^{Standard Packing                          Inner Box of 10 pieces}
• ^{Unitweight                                     50g Approx.}

High performance earth clamp is widely used to connect the pipes to conductor for earthing.Available in three colours – Red for non-corrosive dry atmospheres, Blue or Green for corrosive or humid conditions.Available in three standard band lengths.

• Material : Brass / Bronze
• Standard : BS-951
• Terminal size – A-D 2.5 – 10mm2
• Strip : SS304 (Debuting)
• Aluminum Label : White/Green/Blue/Red

EARTHING BREAKER

Clamp & Link : Brass & Copper

Bolt : Brass

Base : PP V2 FR

Terminal Sections : 16 mm² – 35 mm² (Low isolation bar)

Disconnecting Link With Ceramic Base

EARTH-DISCONNECTING BAR - ABOVE GROUND Application: • The earth-disconnecting bar is installed at the foot of the earth column. • It enables the opening of the earth circuit to take a measurement of the earth plug. • The opening from the earth circuit can be done by disconnecting the copper link with a screwdriver or spanner. Material Specification: • Clamp & Link : Brass & Copper • Bolt & Stud : Brass • Base : Porcelain insulator with Steel Zinc Plated • Terminal Sections: 16 mm² - 35 mm² (High isolation bar)

ROD TO TAPE CLAMP – TYPE A

Ground rod clamp are copper alloys used for joining to copper tapes these clamps are available to suit different sizes of earth rods and copper tapes ensure perfect fit and lasting connection and excellent resistance to corrosion.

Material : copper alloys, ASM C83600,BS EN 1982,LG-2

Bolt : Brass or Steel

Earthing Connector Double End Clamp

The Clamp joinning to the round bar and metal strip.

Clamp Body : Brass & Aluminium

Bolt & Nut : Steel Nickel Plated

Connecion :  Rod dia. - 08mm to 10mm

As Per Customise devlopment

The Clamp joinning to the round bar and metal strip.

Clamp Body  Bolt & Nut   Connecion

Brass & Aluminium

Steel Nickel Plated

Rod dia. - 08mm to 10mm

Copper Busbars

peigne de raccordement

Busbar : Copper

Insulation Cover : PP V2 FR (Blue / Black)

Terminal Sections : 16 mm² – 13 Pin

• _{Cosse et raccords seerage par brides}
• _{Clamp with T-clamp for cable connection.}
• _{Material: Brass body}
• _{• U tightener: M6 brass}
• _{• Bolts: Brass with copper washer}
• _{• Capacity: Cable from 10 to 70mm² max.}

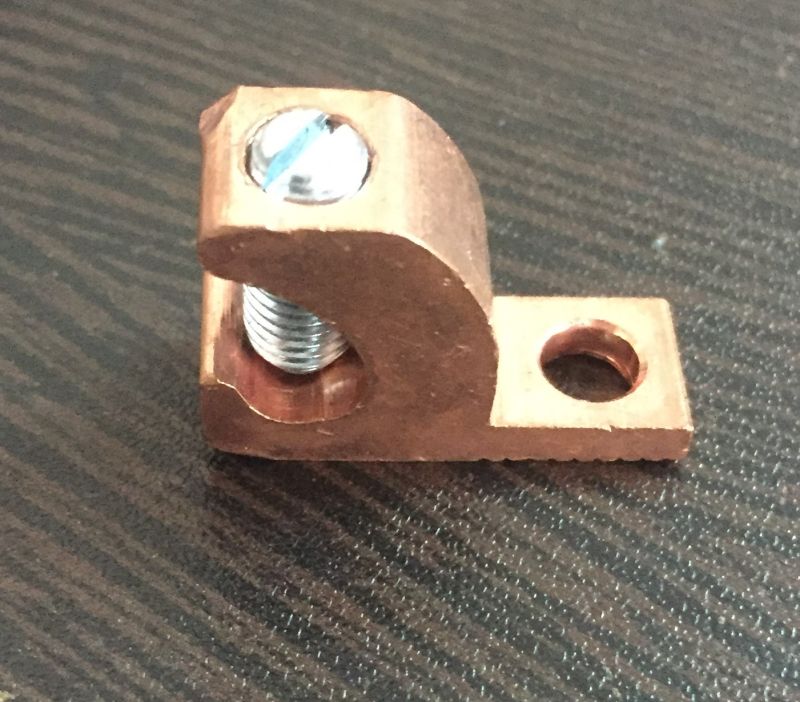

Copper Lay - In Lug Connector

Extrusion Aluminum & Copper alloy

CONDUCTOR RANGE : #4-14 AWG

Cosse et raccords seerage par brides

Clamp with T-clamp for cable connection.

Material: Brass body

• U tightener: M6 brass

• Bolts: Brass with copper washer

• Capacity: Cable from 10 to 70mm² max.
