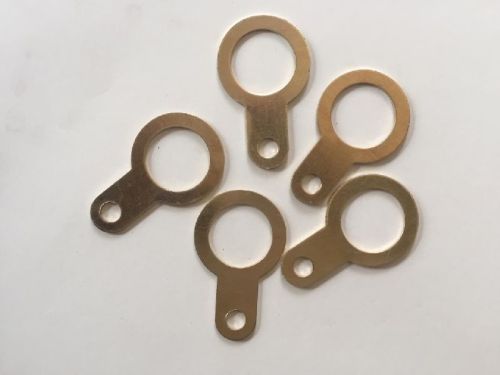

Brass Earthing Tag
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Brass Earth Tags |
| Material | Brass |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Diameter
20-40mm, 40-60mm, 60-80mm, 80-100mm
Thickness
1.5-2mm
Certification
ISI Certified
Application
Earthing Power Supply
Feature
Corrosion Proof, Fine Finishing
Condition
New
Finishing
Non Polished
Usage
cable glands
MOQ
5000
Size
20mm,25mm,32mm,40mm,50mm,63mm,75mm
Product Code
TAG
Port
MUMBAI
Payment Terms
D/P, T/T
Delivery Time
AS PER CUSTOMERS ORDER SCHEDULE
| Earth Tags | ||||
| Accessories for cable glands, Earth Tags installed between the Cable Gland and equipment, | ||||
| provide an earth bond connection. | ||||
| Metric Size | NPT Size | Thickness | ||
| M16 | 1/2" | 1.3mm | ||
| M20 | 3/4" | 1.3mm | ||
| M25 | 1" | 1.5mm | ||
| M32 | 1 1/4" | 1.5mm | ||
| M40 | 1 1/2" | 1.5mm | ||
| M50 | 2" | 1.5mm | ||
| M63 | 2 1/2" | 1.5mm | ||
| M75 | 3" | 1.5mm | ||
| M90 | 3 1/2" | 2.0mm | ||
| M100 | 2.0mm | |||
| Material : Brass / Aluminum / Stainless Steel | ||||
| Type: CW & BW Cable Glands | ||||
| Terminal Connection : Thread & Without Thread (Screw & Washer) | ||||
| Finished : Natural,Nickel, Tin Plated | ||||
