| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |

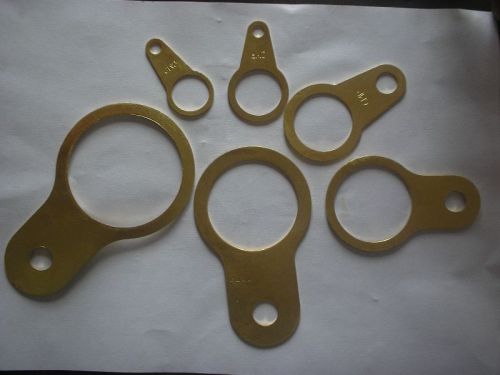

| Type | Brass Earth Tags |
| Material | Brass |
| Click to view more | |
Product Details
Diameter
20-40mm
Thickness
1.5-2mm
Certification
ISI Certified
Application
Earthing Power Supply
Color
Golden
Feature
Corrosion Proof, Fine Finishing, Optimum Quality
Condition
New
Finishing
Polished
Product Code
TAG
Port
MUMBAI
Payment Terms
D/P, T/T
Delivery Time
AS PER CUSTOMERS ORDER SCHEDULE
Packaging Details
AS PER STANDARED
| Earth Tags | ||||
| Accessories for cable glands, Earth Tags installed between the Cable Gland and equipment, | ||||
| provide an earth bond connection. | ||||
| Metric Size | NPT Size | Thickness | ||
| M16 | 1/2" | 1.3mm | ||
| M20 | 3/4" | 1.3mm | ||
| M25 | 1" | 1.5mm | ||
| M32 | 1 1/4" | 1.5mm | ||
| M40 | 1 1/2" | 1.5mm | ||
| M50 | 2" | 1.5mm | ||
| M63 | 2 1/2" | 1.5mm | ||
| M75 | 3" | 1.5mm | ||
| M90 | 3 1/2" | 2.0mm | ||
| M100 | 2.0mm | |||
| Material : Brass / Aluminum / Stainless Steel | ||||
| Type: CW & BW Cable Glands | ||||
| Terminal Connection : Thread & Without Thread (Screw & Washer) | ||||
| Finished : Natural,Nickel, Tin Plated | ||||
